Scheda tecnica
- Modello
- INSULATED TANK
- Capacità
- BIG
- Categoria
- 1. Wine
03. INSULATED TANK Stainless Steel AISI 304
Standard Equipment
- Cover with bolt Ø 300 mm.
- Moulded refrigerating band
- Ooval door 304×400
- Oval doorinsulation
- Gate for clear removal (to specify Ø)
- Gate for complete wasting-pipe (to specify Ø)
- Ladder support

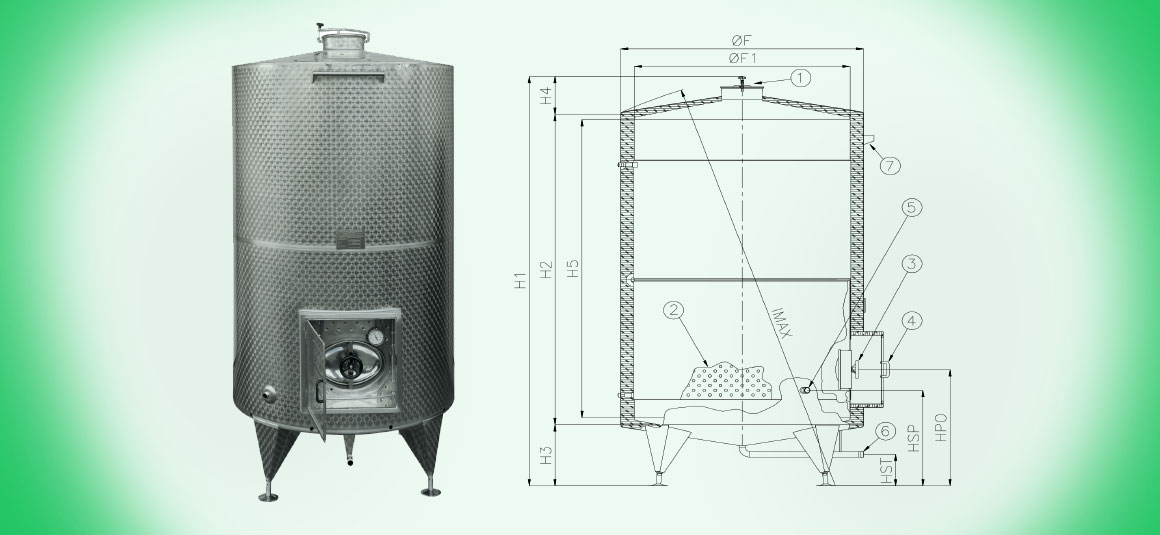

| COD. | L. | ØF | H1 | H2 | H3 | H4 | ØF1 | H5 | HPO | HSP | HST | Legs | IMAX | |
| ISO1000A | 1000 | 1160 | 2305 | 1500 | 515 | 290 | 920 | 1400 | 975 | 805 | 330 | 3 reg. | 2340 | |
| ISO1500A | 1500 | 1310 | 2320 | 1500 | 515 | 305 | 1160 | 1400 | 975 | 805 | 325 | 3 reg. | 2350 | |
| ISO2000A | 2000 | 1500 | 2360 | 1500 | 515 | 345 | 1310 | 1400 | 975 | 805 | 280 | 3 reg. | 2645 | |
| ISO2500A | 2500 | 1500 | 2735 | 1875 | 515 | 345 | 1310 | 1775 | 975 | 805 | 280 | 4 reg. | 2990 | |
| ISO3000A | 3000 | 1500 | 3115 | 2250 | 515 | 345 | 1310 | 2150 | 975 | 805 | 280 | 4 reg. | 3130 | |
| ISO3000B | 3000 | 1800 | 2360 | 1500 | 515 | 345 | 1600 | 1400 | 975 | 805 | 280 | 4 reg. | 2680 | |
| ISO4000A | 4000 | 1800 | 2860 | 2000 | 515 | 345 | 1600 | 1900 | 975 | 805 | 280 | 4 reg. | 3010 | |
| ISO5000A | 5000 | 1800 | 3360 | 2500 | 515 | 345 | 1600 | 2400 | 975 | 805 | 280 | 4 reg. | 3450 | |
| ISO5000B | 5000 | 2100 | 2895 | 2000 | 530 | 365 | 1800 | 1900 | 990 | 820 | 275 | 4 reg. | 3120 | |
| ISO6000A | 6000 | 1800 | 3860 | 3000 | 515 | 345 | 1600 | 2900 | 975 | 805 | 280 | 4 reg. | 3900 | |
| ISO6500A | 6500 | 2100 | 3395 | 2500 | 530 | 365 | 1800 | 2400 | 990 | 820 | 275 | 4 reg. | 3590 | |
| ISO8000A | 8000 | 2100 | 3895 | 3000 | 530 | 365 | 1800 | 2900 | 990 | 820 | 275 | 4 reg. | 4070 | |
| ISO8000B | 8000 | 2300 | 3420 | 2500 | 530 | 390 | 2100 | 2400 | 990 | 820 | 255 | 5 reg. | 3805 | |
| ISO10000A | 10000 | 2300 | 3920 | 3000 | 530 | 390 | 2100 | 2900 | 990 | 820 | 255 | 5 reg. | 4220 | |
Special fittings
- Washing ball – codice AZ0071
- Flanged decanting valve*
- Every kind of valves*
