Scheda tecnica
- Modello
- FIG "FERMENTINO" Pneumatic System
- Capacità
- BIG
- Categoria
- 1. Wine
05. Wine Tank Mod. FIG “FERMENTINO” Pneumatic System Stainless Steel AISI 304
Standard Equipment
- Float and kit pneumatic
- Float level arm
- Level gauge with protection sheet
- Wine taster
- Gate for clear removal (to specify Ø)
- Gate for complete wasting-pipe (to specify Ø)
- Ladder support

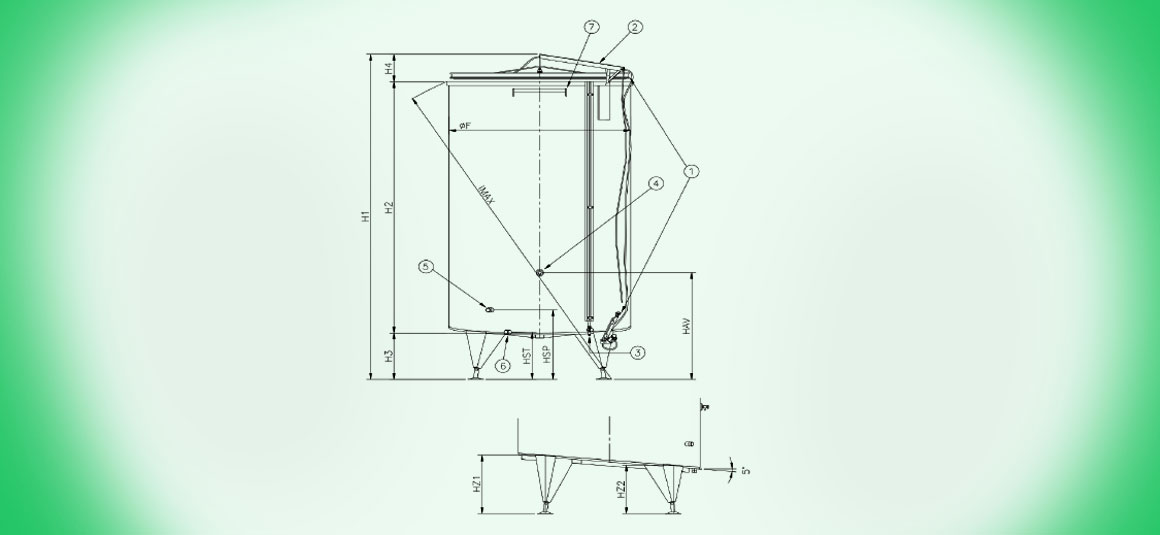

| COD. | L. | ØF | H1 | H2 | H3 | H4 | HAV | HSP | HST | LEGS | HZ1 | HZ2 | IMAX | |
| FIG1500A | 1500 | 1160 | 2270 | 1500 | 465 | 305 | 1165 | 700 | 475 | 4 reg. | 540 | 475 | 2245 | |
| FIG2000A | 2000 | 1310 | 2280 | 1500 | 465 | 315 | 1165 | 695 | 475 | 4 reg. | 555 | 475 | 2305 | |
| FIG2500A | 2500 | 1310 | 2655 | 1875 | 465 | 315 | 1165 | 695 | 475 | 4 reg. | 555 | 475 | 2630 | |
| FIG3000A | 3000 | 1310 | 3030 | 2250 | 465 | 315 | 1165 | 695 | 475 | 4 reg. | 555 | 475 | 2970 | |
| FIG3000B | 3000 | 1600 | 2480 | 1500 | 460 | 520 | 1160 | 690 | 470 | 4 reg. | 575 | 475 | 2440 | |
| FIG4000A | 4000 | 1600 | 2980 | 2000 | 460 | 520 | 1160 | 690 | 470 | 4 reg. | 575 | 475 | 2855 | |
| FIG5000A | 5000 | 1600 | 3480 | 2500 | 460 | 520 | 1160 | 690 | 470 | 4 reg. | 575 | 475 | 3295 | |
| FIG5000B | 5000 | 1800 | 3065 | 2000 | 460 | 605 | 1160 | 685 | 470 | 5 reg. | 585 | 475 | 2945 | |
| FIG6000A | 6000 | 1600 | 3980 | 3000 | 460 | 520 | 1160 | 690 | 470 | 4 reg. | 575 | 475 | 3750 | |
| FIG6500A | 6500 | 1800 | 3565 | 2500 | 460 | 605 | 1160 | 685 | 470 | 5 reg. | 585 | 475 | 3375 | |
| FIG8000A | 8000 | 1800 | 4065 | 3000 | 460 | 605 | 1160 | 685 | 470 | 5 reg. | 585 | 475 | 3820 | |
| FIG8000B | 8000 | 2100 | 3690 | 2500 | 500 | 690 | 1200 | 725 | 510 | 5 reg. | 650 | 520 | 3530 | |
| FIG10000A | 10000 | 2100 | 4190 | 3000 | 500 | 690 | 1200 | 725 | 510 | 5 reg. | 650 | 520 | 3965 | |
| FIG13500A | 13500 | 2400 | 4070 | 3000 | 520 | 550 | 1220 | 750 | 530 | 5 reg. | 700 | 550 | 4110 | |
Special fittings
- Round door Ø 400 mm.Cod AP0003
- Oval door moulded 300x435only for diameter 1310 Codice APOOO7
- Oval door 304×400 mm.Codice APOOO4
- Windlass for float level arm Codice AZ0031
- Thermometer Codice AZ0041
- Rettangular door 420×310 mm. Codice AP0005
- Portella rettangolare 530×400 mm. – Codice AP0006
- Every kind of valves *
- Electric boiler *
- Moulded refrigerating band *
