Scheda tecnica
- Modello
- FCG Pneumatic System
- Capacità
- BIG
- Categoria
- 1. Wine
06. Wine tank stainless steel Mod. FCG Pneumatic System
Standard Equipment
- Float and kit pneumatic
- Float level arm
- Level gauge with protection sheet
- Wine taster
- Gate for clear removal (to specify Ø)
- Gate for comletle wasting-pipe (to specify Ø)
- Ladder support

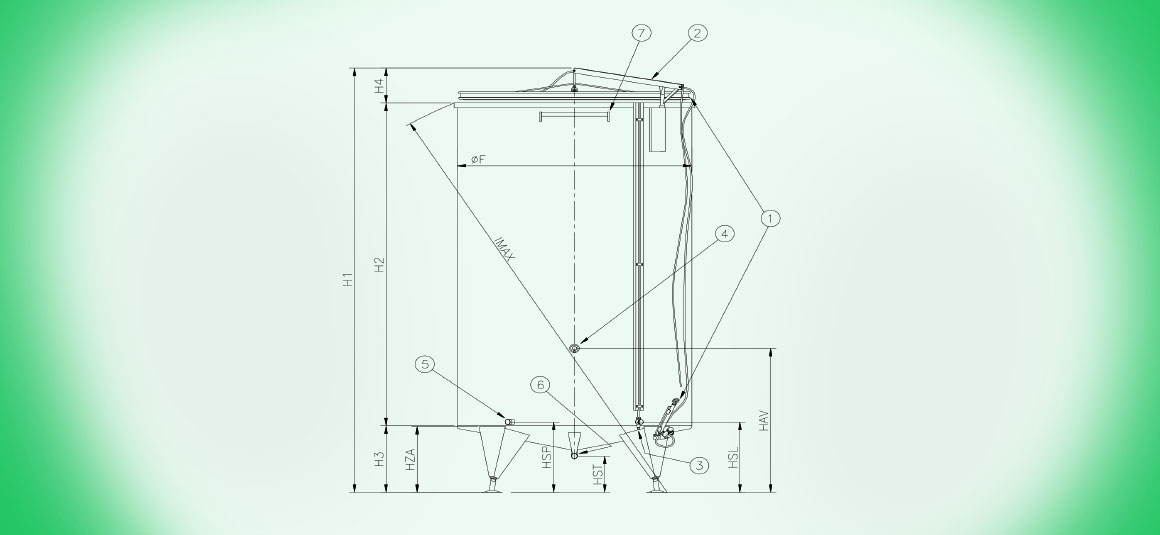

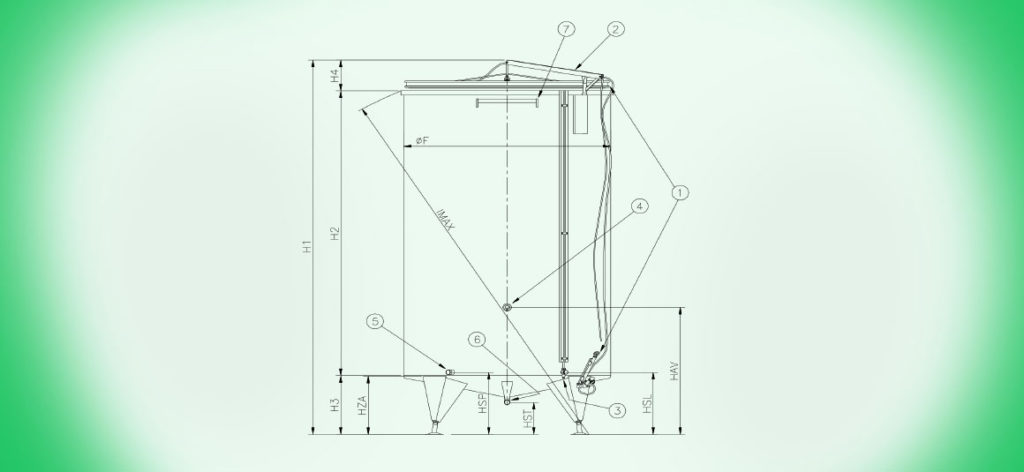

| COD. | L. | ØF | H1 | H2 | H3 | H4 | HSL | HAV | HSP | HST | LEGS | HZA | IMAX |
| FCG2500A | 2500 | 1310 | 2705 | 1875 | 515 | 315 | 615 | 1215 | 545 | 325 | 3 reg. | 510 | 2760 |
| FCG3000A | 3000 | 1310 | 3080 | 2250 | 515 | 315 | 615 | 1215 | 545 | 325 | 3 reg. | 510 | 3090 |
| FCG3000B | 3000 | 1600 | 2535 | 1500 | 515 | 520 | 615 | 1215 | 545 | 280 | 4 reg. | 510 | 2480 |
| FCG4000A | 4000 | 1600 | 3035 | 2000 | 515 | 520 | 615 | 1215 | 545 | 280 | 4 reg. | 510 | 2905 |
| FCG5000A | 5000 | 1600 | 3535 | 2500 | 515 | 520 | 615 | 1215 | 545 | 280 | 4 reg. | 510 | 3345 |
| FCG5000B | 5000 | 1800 | 3120 | 2000 | 515 | 605 | 615 | 1215 | 545 | 280 | 4 reg. | 510 | 2985 |
| FCG6000A | 6000 | 1600 | 4035 | 3000 | 515 | 520 | 615 | 1215 | 545 | 280 | 4 reg. | 510 | 3800 |
| FCG6500A | 6500 | 1800 | 3620 | 2500 | 515 | 605 | 615 | 1215 | 545 | 280 | 4 reg. | 510 | 3420 |
| FCG8000A | 8000 | 1800 | 4120 | 3000 | 515 | 605 | 615 | 1215 | 545 | 280 | 4 reg. | 510 | 3865 |
| FCG8000B | 8000 | 2100 | 3720 | 2500 | 530 | 690 | 630 | 1230 | 560 | 275 | 4 reg. | 525 | 3560 |
| FCG10000A | 10000 | 2100 | 4220 | 3000 | 530 | 690 | 630 | 1230 | 560 | 275 | 4 reg. | 525 | 3995 |
| FCG13500A | 13500 | 2400 | 4080 | 3000 | 530 | 550 | 630 | 1230 | 560 | 255 | 5 reg. | 525 | 4180 |
Special fittings
- Round door Ø 400 mm.Cod AP0003
- Oval door moulded 300x435only for diameter 1310 Codice APOOO7
- Oval door 304×400 mm.Codice APOOO4
- Windlass for float level arm Codice AZ0031
- Thermometer Codice AZ0041
- Rettangular door 420×310 mm. Codice AP0005
- Portella rettangolare 530×400 mm. – Codice AP0006
- Every kind of valves *
- Electric boiler *
- Moulded refrigerating band *
- Flanged decanting valve *
